Sluggo
Active Member
Here it is! Stanfix's first Pet of the Month. Da da da dah! How 'bout some stats Dave?
Last edited by a moderator:
-
Hello there guest and Welcome to The #1 Classic Mustang forum!
To gain full access you must Register. Registration is free and it takes only a few moments to complete.
Already a member? Login here then!
September 2008 Car of the Month- Dave Sanborn's '66
- Thread starter Sluggo
- Start date
68EFIvert
Well-Known Member
Re: September car of the Month Dave Sanborn
Congrats Dave! A well deserved honor.
Congrats Dave! A well deserved honor.
A
Anonymous
Guest
Re: September car of the Month Dave Sanborn
Oooooo Nice. I want one.
Oooooo Nice. I want one.
monkeystash
Active Member
Re: September car of the Month Dave Sanborn
Sweet! Great work Dave!
Sweet! Great work Dave!
daveSanborn
Active Member
Re: September car of the Month Dave Sanborn
Thanks Sluggo! I am humbled though.... some of you guys have some really nice cars. Lauries "trouble", Darrelds 'vert and Jeffs '67FB immediately come to mind.
Stats? Really? You want to go down that road? Alright, you asked for it....
1966 Mustang FB modified (a little bit) to resemble a GT350 car. Other than the cars shell, which had all new metal installed, the only items left from the original car are some of the FG trim pieces in the back seat area, the back glass and the cigaratte lighter.
Engine and Drivetrain
-347 StreetFighter engine
-BBK SSI EFI w/70MM throttle body
-Stock T5
-AL driveshaft
-Narrowed 9" with 3.50 TracLoc
-Mustang Steve cable clutch
-Lokar gas pedal and throttle cable
Exhaust
-FRPP ceramic coated shorties dumping into R model style bullet mufflers and side exits
Heating/Cooling
-Factory heat system/NO AC
-Fluidyne HP series AL radiator
-SPAL pusher/Mech puller
Suspension/Brakes
-Front - Rod&CustomMotorsports MII with adjustable front coilovers, tubular UCA/LCA's and 1" sway bar
-Rear - Parallel 4 link w/Panhard bar and Chris Alston coilovers
-Power R&P steering
-Power disc brake booster
-Front 11" disc brakes
-Rear 11" disc brakes
-New 3/16" brake lines bent and routed
-Stainless braided flex lines at all 4 corners
Electrical
-Painless wiring
-Trunk mounted Optima Redtop in Taylor box
-Headlight Relays
-EFI
-Sony Explode CD player
Wheel and Tire
-'05 Mustang GT 17x8 wheels
-255/45/17 BFG rear
-225/55/17 BFG front
-Wheel spacer/adapters
Paint and Body
-The '66 FB shell is permanently mounted onto a one piece 2x3" boxed channel frame w/integrated DS safety loop
-2" tubular front frame rail to cowl braces
-FG Shelby style hood
-R model front apron
-Shelby style quarter windows
-Ultra White and Gaurdsman Blue BC/CC Dupont paint
Interior
-R model type rear shelf
-Roll bar/roll cage with hinged/removable side bars
-'04 Mustang leather seats
-Steering column moved 2" closer to the dash

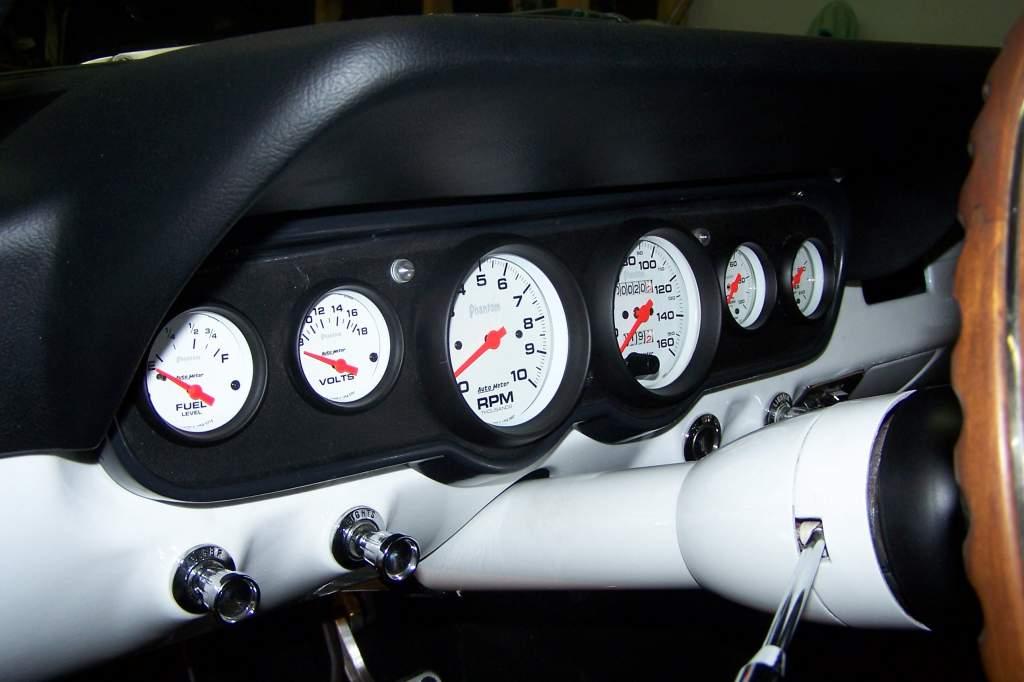

-Six guage instrument cluster w/Autometer Phantom series gauges
-Simpson 5 pt. camlock restraints
I'm pretty sure I forgot a few things, but that pretty much sums up the parts. The car runs, drives and handles unlike any other classic Mustang I've built/owned. It's more like driving a modern Mustang than driving a classic.
Thanks Sluggo! I am humbled though.... some of you guys have some really nice cars. Lauries "trouble", Darrelds 'vert and Jeffs '67FB immediately come to mind.
Stats? Really? You want to go down that road? Alright, you asked for it....
1966 Mustang FB modified (a little bit) to resemble a GT350 car. Other than the cars shell, which had all new metal installed, the only items left from the original car are some of the FG trim pieces in the back seat area, the back glass and the cigaratte lighter.
Engine and Drivetrain
-347 StreetFighter engine
-BBK SSI EFI w/70MM throttle body
-Stock T5
-AL driveshaft
-Narrowed 9" with 3.50 TracLoc
-Mustang Steve cable clutch
-Lokar gas pedal and throttle cable
Exhaust
-FRPP ceramic coated shorties dumping into R model style bullet mufflers and side exits
Heating/Cooling
-Factory heat system/NO AC
-Fluidyne HP series AL radiator
-SPAL pusher/Mech puller
Suspension/Brakes
-Front - Rod&CustomMotorsports MII with adjustable front coilovers, tubular UCA/LCA's and 1" sway bar
-Rear - Parallel 4 link w/Panhard bar and Chris Alston coilovers
-Power R&P steering
-Power disc brake booster
-Front 11" disc brakes
-Rear 11" disc brakes
-New 3/16" brake lines bent and routed
-Stainless braided flex lines at all 4 corners
Electrical
-Painless wiring
-Trunk mounted Optima Redtop in Taylor box
-Headlight Relays
-EFI
-Sony Explode CD player
Wheel and Tire
-'05 Mustang GT 17x8 wheels
-255/45/17 BFG rear
-225/55/17 BFG front
-Wheel spacer/adapters
Paint and Body
-The '66 FB shell is permanently mounted onto a one piece 2x3" boxed channel frame w/integrated DS safety loop
-2" tubular front frame rail to cowl braces
-FG Shelby style hood
-R model front apron
-Shelby style quarter windows
-Ultra White and Gaurdsman Blue BC/CC Dupont paint
Interior
-R model type rear shelf
-Roll bar/roll cage with hinged/removable side bars
-'04 Mustang leather seats
-Steering column moved 2" closer to the dash
-Six guage instrument cluster w/Autometer Phantom series gauges
-Simpson 5 pt. camlock restraints
I'm pretty sure I forgot a few things, but that pretty much sums up the parts. The car runs, drives and handles unlike any other classic Mustang I've built/owned. It's more like driving a modern Mustang than driving a classic.
68EFIvert
Well-Known Member
Re: September car of the Month Dave Sanborn
I am glad to see you kept it somewhat original and kept the cigarette lighter. ;D My kind of car! Modded to heck and back!!!!!!!!
I am glad to see you kept it somewhat original and kept the cigarette lighter. ;D My kind of car! Modded to heck and back!!!!!!!!
pnandy
Member
Re: September car of the Month Dave Sanborn
Hey Dave how do you like the 04 seats im planning to check out a power set this weekend.
was it a hard install what type of headroom did you gain or lose
Do you have any other pics of them
Or does any one have them in a 67 68 fastback?
Hey Dave how do you like the 04 seats im planning to check out a power set this weekend.
was it a hard install what type of headroom did you gain or lose
Do you have any other pics of them
Or does any one have them in a 67 68 fastback?
daveSanborn
Active Member
Re: September car of the Month Dave Sanborn
These were a power set... at least the drivers side was. To minimize loss of headroom, the power seat track/motor was removed. Even with the motor removed, these seats sat too high on the stock risers. I had to remove the risers, knock them down an inch or so and then weld them back in. The stock '66 seat tracks (or 67-68) can be easily modified for use with these seats (by using some spacers).
These seats, IMO, look great in a classic Mustang. They're very comfortable and for the money, you can't beat the quality of a factory seat.
These were a power set... at least the drivers side was. To minimize loss of headroom, the power seat track/motor was removed. Even with the motor removed, these seats sat too high on the stock risers. I had to remove the risers, knock them down an inch or so and then weld them back in. The stock '66 seat tracks (or 67-68) can be easily modified for use with these seats (by using some spacers).
These seats, IMO, look great in a classic Mustang. They're very comfortable and for the money, you can't beat the quality of a factory seat.
Last edited by a moderator:
pnandy
Member
Re: September car of the Month Dave Sanborn
ok well i think i'll go pick that set up this weekend then as i need some seats that recline and look good to i'll just recover them in black vinyl later on
ok well i think i'll go pick that set up this weekend then as i need some seats that recline and look good to i'll just recover them in black vinyl later on
Havok1
Member
Re: September car of the Month Dave Sanborn
Congrats Dave. Can't wait to see it in person.
Congrats Dave. Can't wait to see it in person.
daveSanborn
Active Member
Re: September car of the Month Dave Sanborn
See it? Heck I planned on handing you the keys while I'm drinking down there. Just watch for speed bumps and keep the RPMs below 5500 and we'll be alright.
See it? Heck I planned on handing you the keys while I'm drinking down there. Just watch for speed bumps and keep the RPMs below 5500 and we'll be alright.
70_Fastback
Hell Bent for Speed
Re: September car of the Month Dave Sanborn
Dont'cha have a rev limiter on that thing Dave? Just dial her on down for the weekend... ~thu
Dont'cha have a rev limiter on that thing Dave? Just dial her on down for the weekend... ~thu
daveSanborn
Active Member
Re: September car of the Month Dave Sanborn
Nope, no rev limiter.
Nope, no rev limiter.
70_Fastback
Hell Bent for Speed
Re: September car of the Month Dave Sanborn
I'm just curious, do you not like them? Or what's your opinion on them?
I'm just curious, do you not like them? Or what's your opinion on them?
daveSanborn
Active Member
Re: September car of the Month Dave Sanborn
The easiest way to install a rev limiter is to run an MSD box and throw the 6000 RPM chip into it.
Since I'm not running an MSD box, it becomes more difficult. Correct?
The easiest way to install a rev limiter is to run an MSD box and throw the 6000 RPM chip into it.
Since I'm not running an MSD box, it becomes more difficult. Correct?
70_Fastback
Hell Bent for Speed
Re: September car of the Month Dave Sanborn
I did not know, off hand, that you were not running an MSD box.
I did not know, off hand, that you were not running an MSD box.
daveSanborn
Active Member
Re: September car of the Month Dave Sanborn
I actually had a new MSD 6AL kit sitting on the workbench. If I hadn't gone EFI, I would have used it. Once I started messing with all of the EFI wiring, I brought the MSD kit back. It seemed "un-necessary", and from a seat of the pants feel, I can't see how the MSD would have bettered the stock ignition system.
Downside to all of this.... no easy rev limiter.
I actually had a new MSD 6AL kit sitting on the workbench. If I hadn't gone EFI, I would have used it. Once I started messing with all of the EFI wiring, I brought the MSD kit back. It seemed "un-necessary", and from a seat of the pants feel, I can't see how the MSD would have bettered the stock ignition system.
Downside to all of this.... no easy rev limiter.
A
Anonymous
Guest
Re: September car of the Month Dave Sanborn
How about a MSD DIS4? It may help the ignition. I am guessing its a waist spark ignition.
How about a MSD DIS4? It may help the ignition. I am guessing its a waist spark ignition.
