Made good progress on the front end this weekend.

Received my new Griffin radiator late friday afternoon; I mocked it all up to see what I would have to do to get it mounted. I knew the grill shell needed to be heavily modified.

Here it is in stock form:

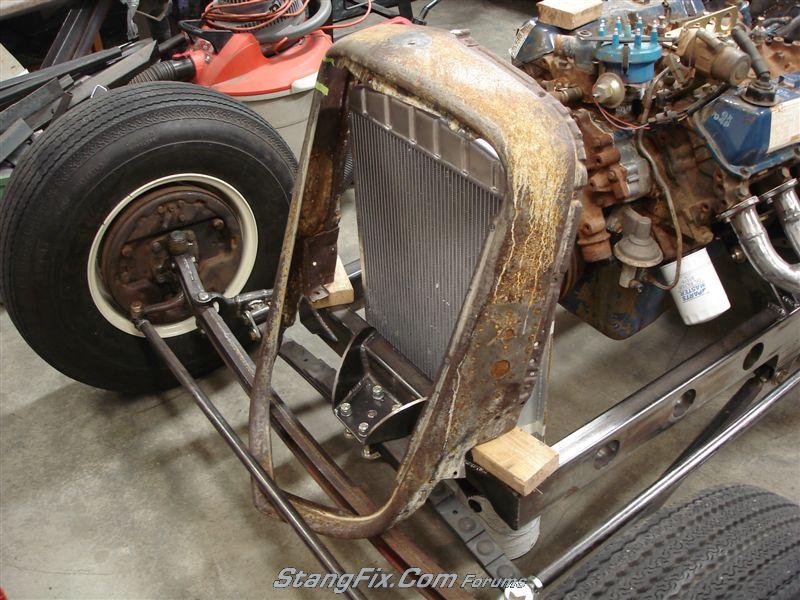

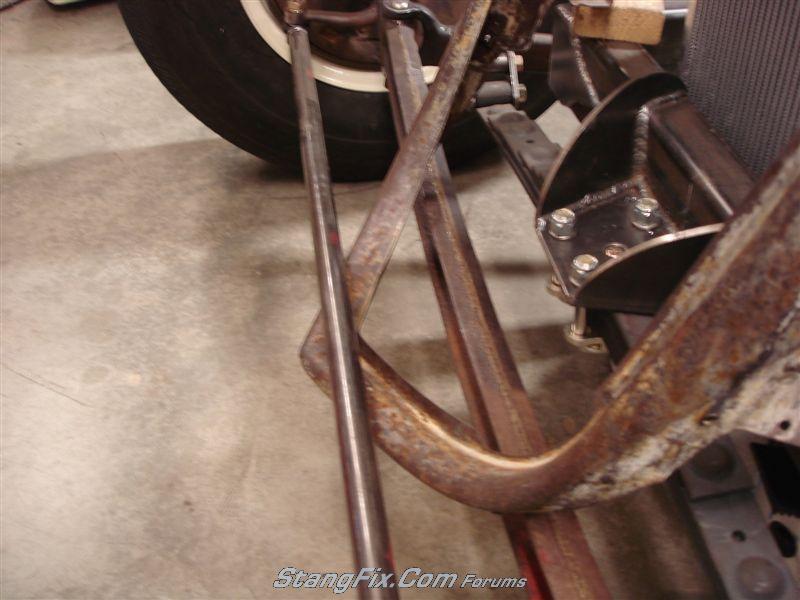

It it too long as it hits on the axle and conflicts with the tie rod as well. Not to mention it sits too high above the top of the radiator.

Conflicts:

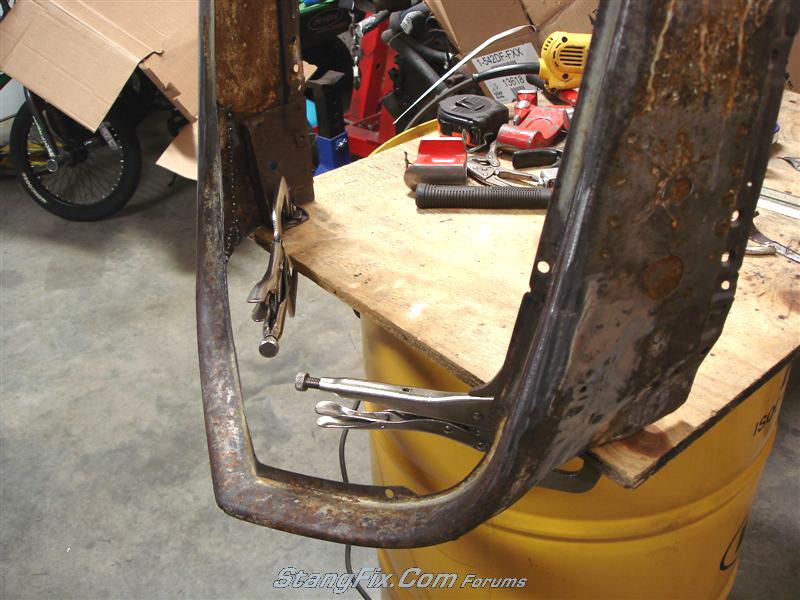

I decided to section the grill 5". Line work of section to be removed. The lower, remaining portion slides up (kinda):

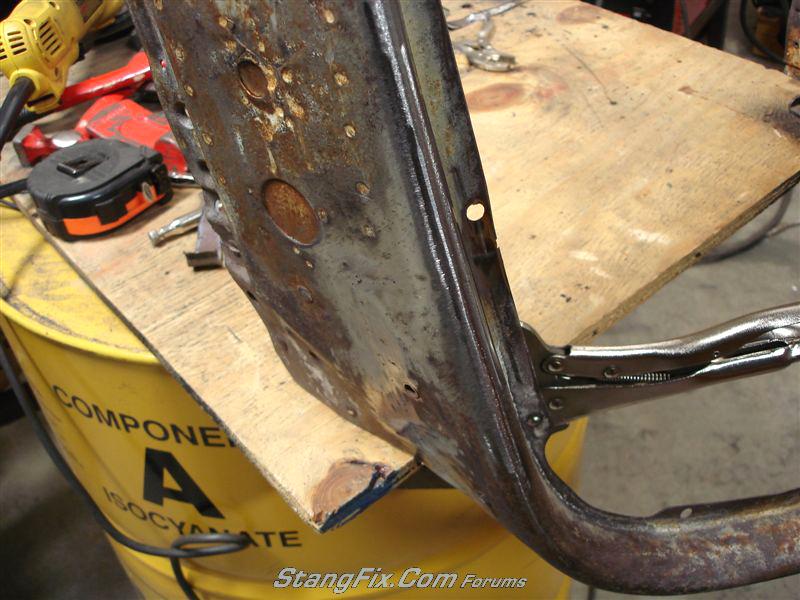

Shortened, Welded and blended in - hides pretty well:


You can barely tell where it was sectioned:

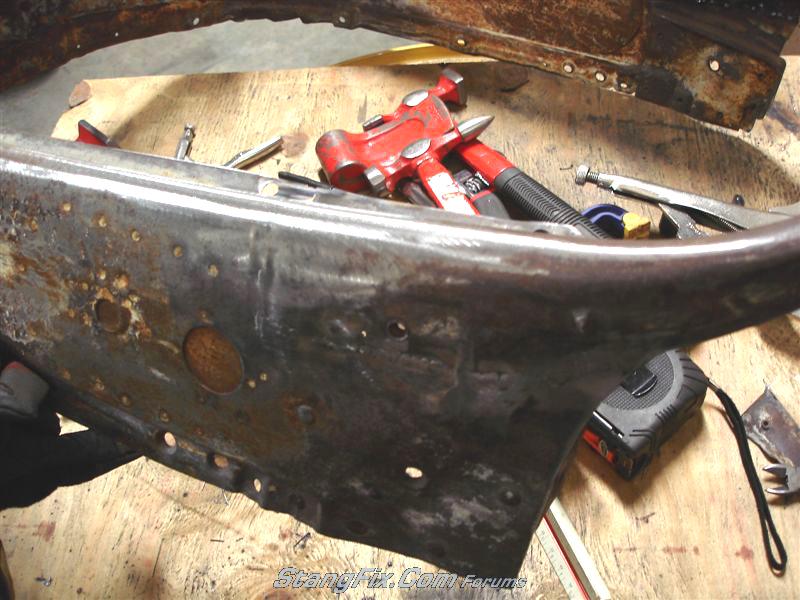

Finished bottom section:



------------------------


Next was correcting the top angle of the grill shell point. I wanted the shell to slope back some, but that though the top point of the grill way off.

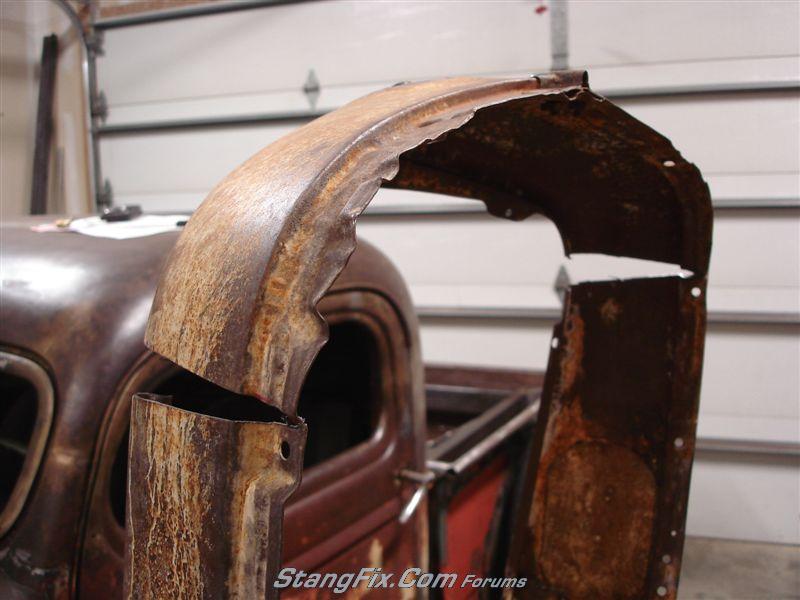

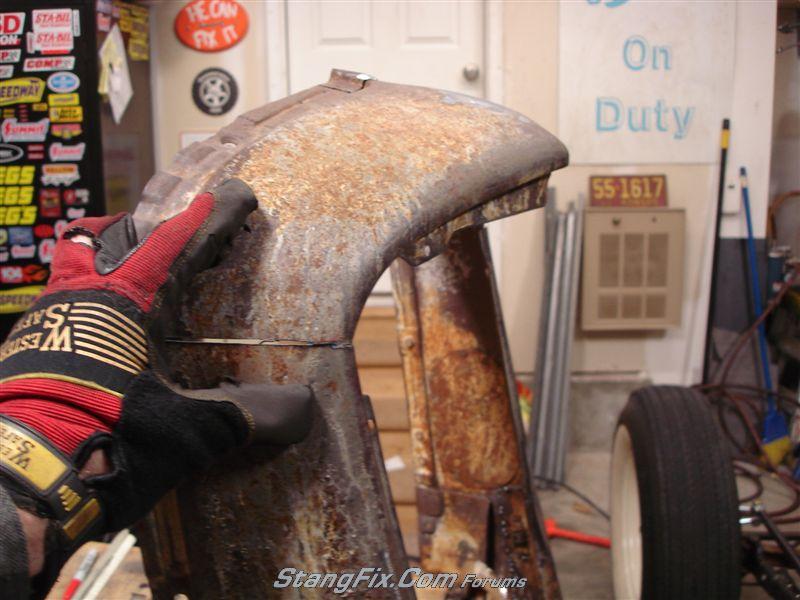

I started by removing a 1-1/2" section pie from the shell:

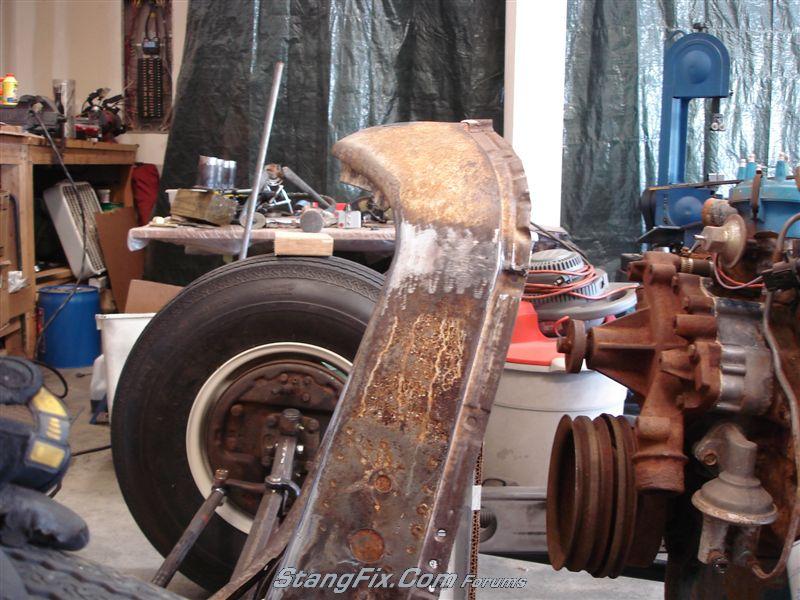

Tilted downward now:


Welded & blended. Point forward now:


Grill shell finished:

Last edited by a moderator:
Once the shell was modified I had to figure out how to mount the radiator so I could then mount the shell.

Radiator just floating in space:

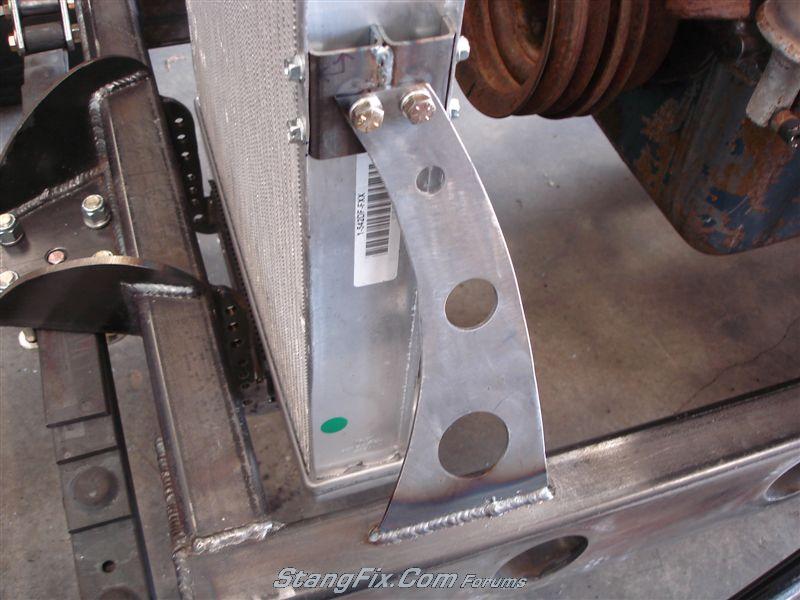

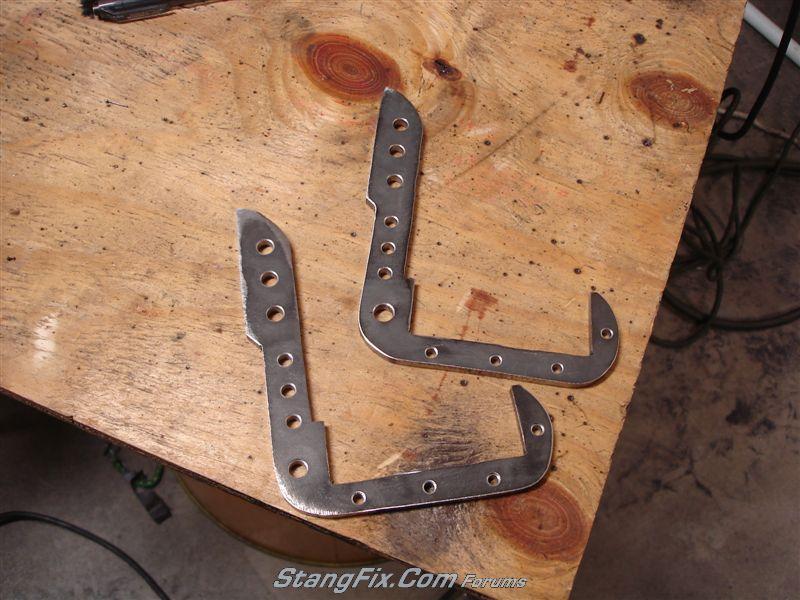

Figured I would make a cradel to sit the radiator in to hold the weight of the system. Cut out these 2 brackets:


Which was the start for this:


Used a piece of an old floormat for the isolater between the radiator & bracket:

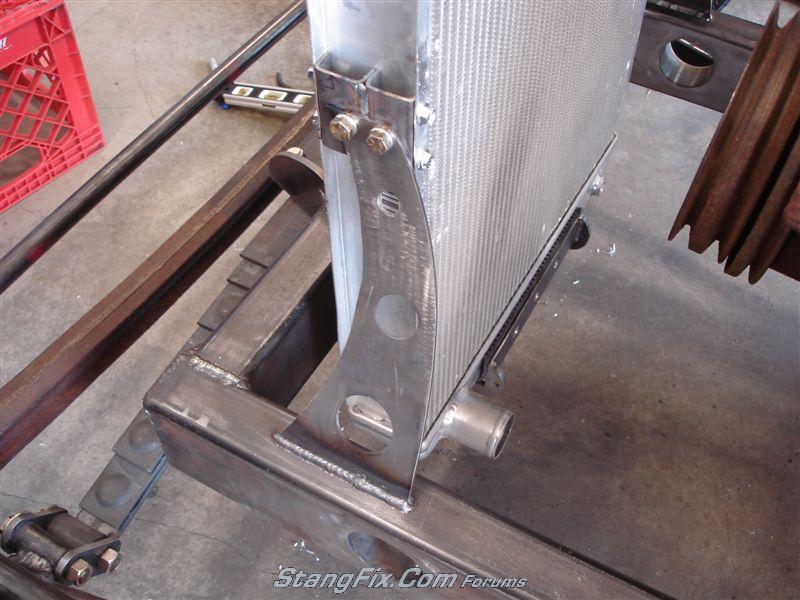

Securely held in the cradle:

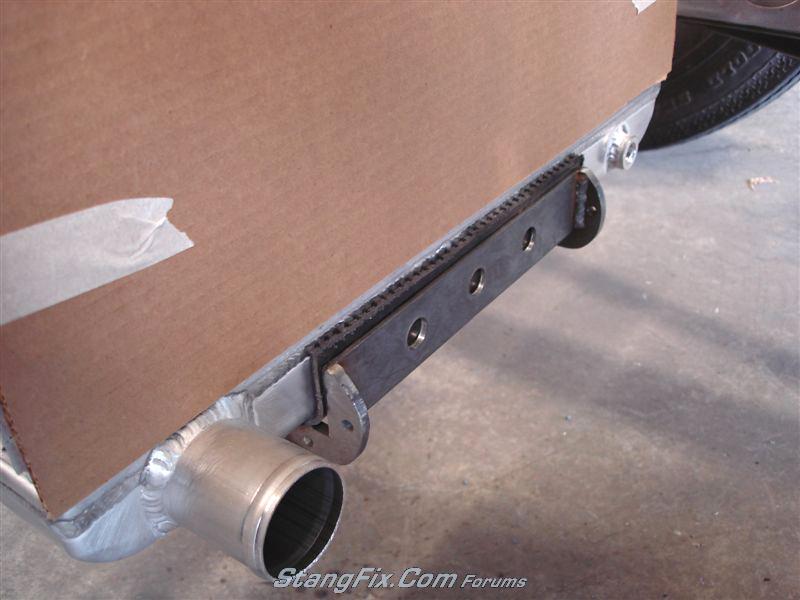

I jumped ahead a bit. But I had to next figure out some side gussets to support the radiator from moving. The square bracket in the radiator rails is not finished yet. It will get a dogear on it to tie to the grill shell to help steady the shell from shaking:


Another view:


With the shell mocked in place, showing how the two pieces flow:


The radiator is very rigid with this setup - I am happy with it:

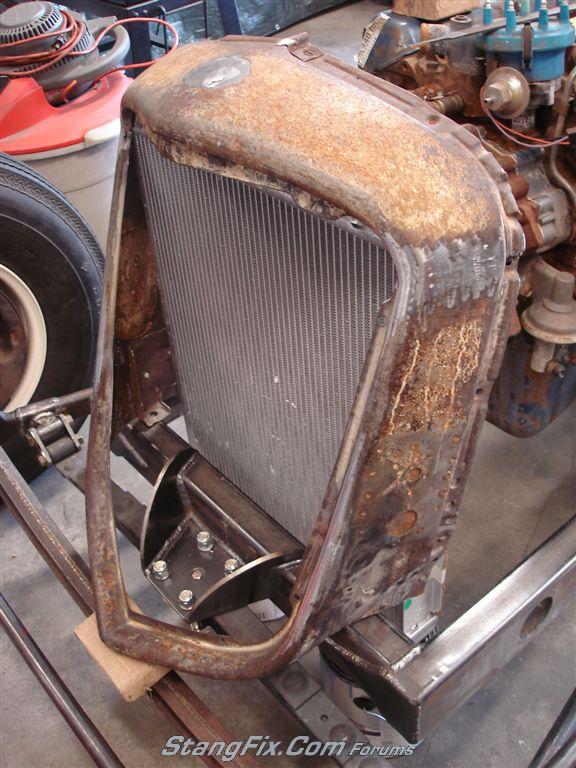

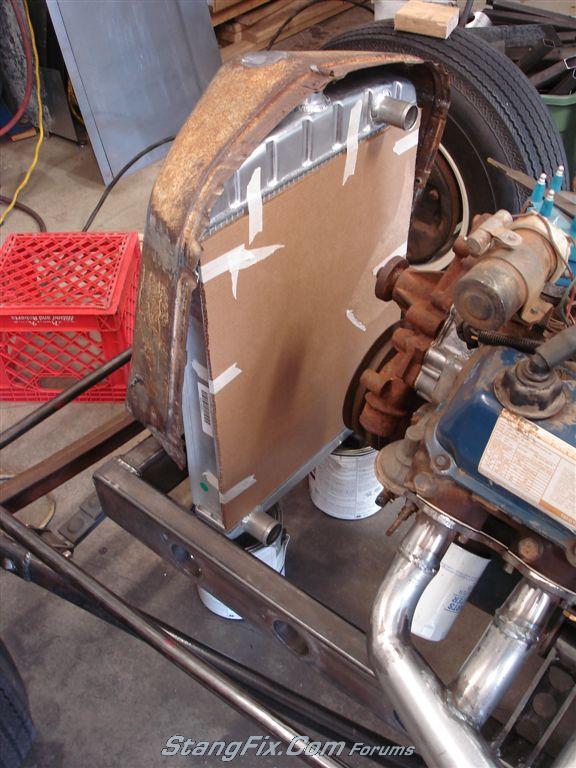

Radiator mounted with mocked up shell location:



And to compare the difference in the shell again...

Before:


After:

Last edited by a moderator:
Nice work! I may have missed it, but are you doing a remote filler neck since the one on the radiator is covered by the grill shell?

Thanks guys!

"buening" said:
Nice work! I may have missed it, but are you doing a remote filler neck since the one on the radiator is covered by the grill shell?
Click to expand...

And good eye Lil' J! I am going to cut a new circular access hole in the top of the shell to get to the fill cap. I'm just waiting until I get the shell mounted rigid to determine the exact hole location.

Thanks! Are you actually wanting the hole in the top of the shell? If not you can use a remote filler in the upper hose. Or if you use a closed system with an overflow tank, you can fill it via overflow tank. I think it'd look a bit better, merely my opinion though.

I thought about an in-line filler, but the radiator inlet is higher than the top outlet on the block. So the better option would be to fill it through the overflow.

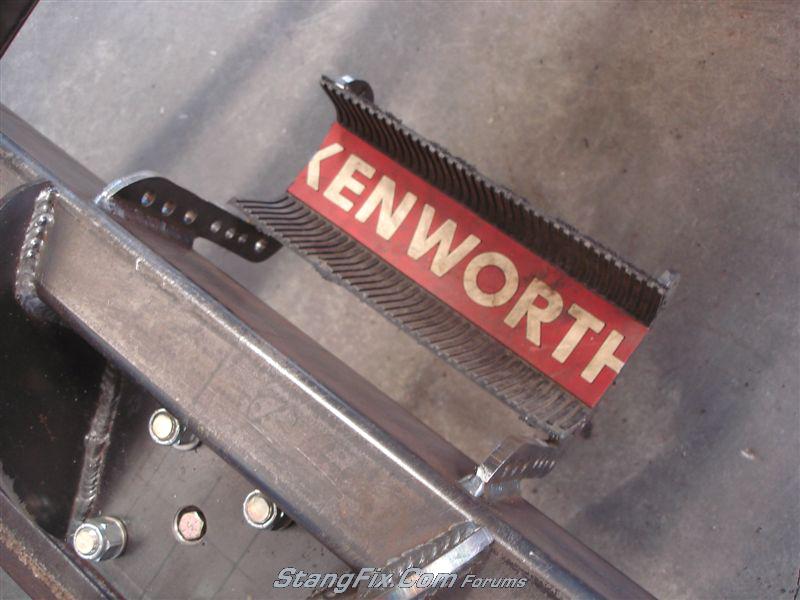

Believe it or not, but that is the type of hood ornament that I am using. I have it drawn up in CAD here. I will ship of a DXF and have it laser cut.

I am not finding any online to purchase.

There might be some active duty guys around this site that might be able to scrounge a real life one............
